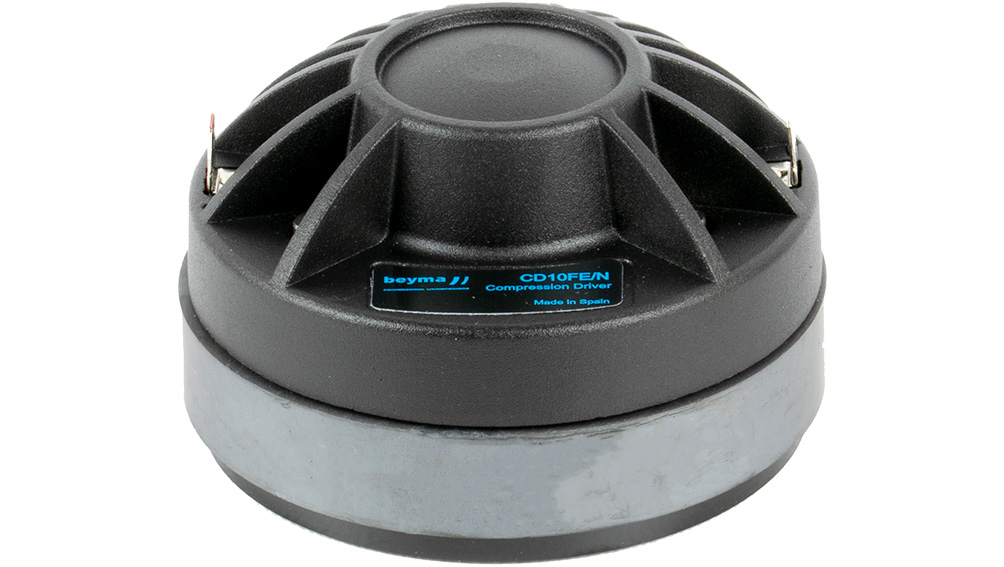

driver Beyma CD10Fe/N

Acasa/Difuzoare/înalte/driver Beyma CD10Fe/N

driver Beyma CD10Fe/N

In Stock

47,95  + TVA



Putere: 70W AES peste 1,2 kHz, program 140W peste 1,2 kHz
Sensibilitate: 109 dB/1W/ 1M cuplat la horn
Domeniu de frecvență: 700-19000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 25 mm 1 in
Diametru bobină: 44,4 mm 1,75 in
Preț kit reparații: 26,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 25 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5 ohm @ 4kHz
Re 4.3 ohm
Power capacity 70 W AES above 1.2 kHz
Program power 140 W above 1.2 kHz
Sensitivity 109 dB 1 W @ 1 m coupled to horn
Frequency range 700-19000 Hz
Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter 44.4 mm 1.75 in
Flux density 1.65 T
BL factor 6.6 N/A
Diaphragm material PM4

CONSTRUCTIVE DETAILS



External diameter 100 mm 3.94 in
Depth 62 mm 2.44 in
Mounting Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.
Mounting hardware is supplied
Net weight 1.3 kg 2.86 lb
Total weight 1.4 kg 3.1 lb
Magnet Ferrite
