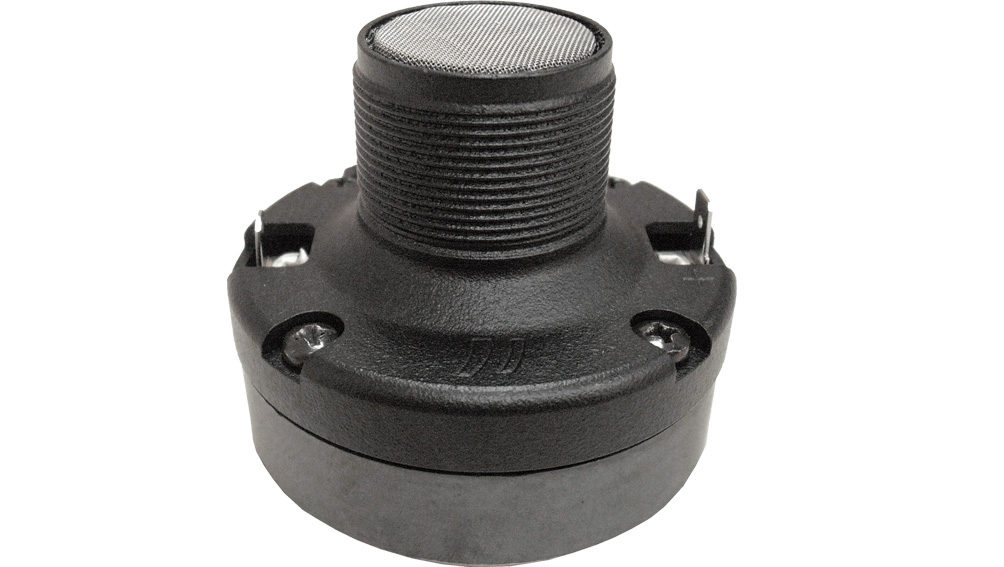

driver Beyma CD1S

Acasa/Difuzoare/înalte/driver Beyma CD1S

driver Beyma CD1S

In Stock

35,00  + TVA

putere : 30W @ 60W AES peste  2500 hz
sensibilitate : 106 dB @ 1W @ 1m
domeniu de frecvenţă : 2 kHz @ 20 kHz
impedanţă : 8 ohm



TECHNICAL SPECIFICATIONS



Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 6.7 ohm @ 6.7 kHz
Re 5.4 ohm
Power capacity 30 W AES above 2.5 kHz
Program power 60 W above 2.5 kHz
Sensitivity 106 dB 1W / 1m @ ZN coupled to TD-2012/N

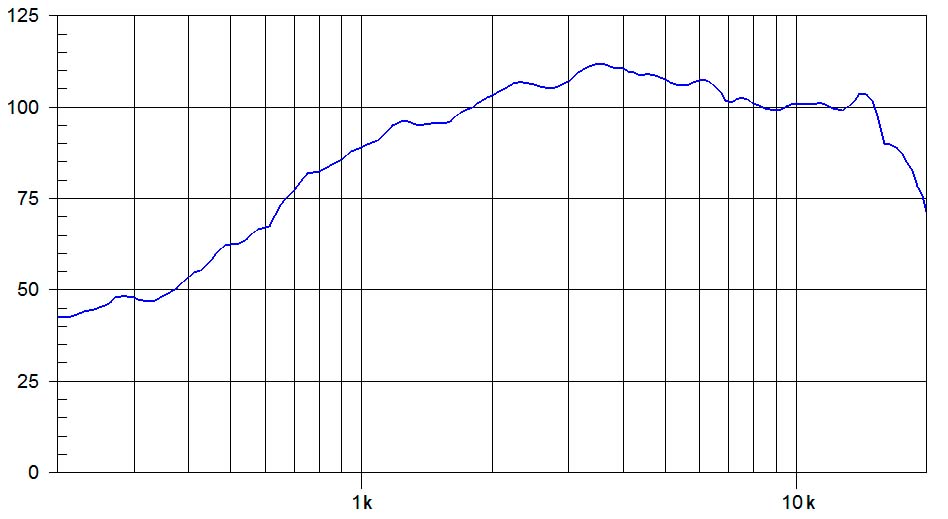

Frequency range 2000-20000 Hz
Recom. crossover frequency 2.5 kHz or higher (12 dB/oct. min slope)
Voice coil diameter 25.4 mm 1 in
Flux density 1.5 T
BL factor 4.6 N/A
Diaphragm material PM4

CONSTRUCTIVE DETAILS



External diameter 73 mm 2.87 in
Depth 65 mm 2.56 in
Mounting 1″ 3/8 thread
Net weight 0.6 kg 1.32 lb
Total weight 0.7 kg 1.54 lb
Magnet Ferrite
