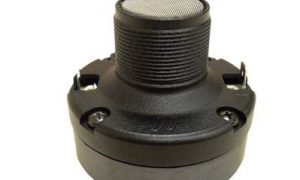

driver Beyma CD1Nd

driver Beyma CD1Nd

In Stock

50,95  + TVA



Putere: 20W AES peste 2 kHz, program 40W peste 2 kHz
Sensibilitate: 110 dB/1W/ 1M cuplat la TD-164
Domeniu de frecvență: 1000-20000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 25,4 mm 1 in
Diametru bobină: 25,4 mm 1 in
Preț kit reparații: —————





TECHNICAL SPECIFICATIONS



Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5.8 ohm
Re 5.1 ohm
Power capacity 20 W AES above 2 kHz
Program power 40 W above 2 kHz
Sensitivity 110 dB 1W / 1m @ ZN acoplado a bocina TD-164
Frequency range 1000-20000 Hz
Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)
Voice coil diameter 25.4 mm 1 in
Flux density 1.85 T
Diaphragm material Polyamide

CONSTRUCTIVE DETAILS



External diameter 64 mm2.52 in
Depth 38 mm 1.49 in
Mounting Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M4 threaded holes. 180º apart on
53 mm (2.08 in) diameter circle.
Mounting hardware is supplied
Net weight 0.4 kg 0.9 lb
Total weight 0.5 kg 1.1 lb
Magnet Neodymium
