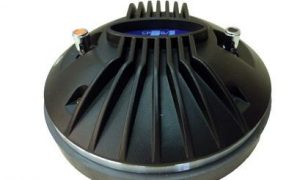

driver Beyma CP755Nd

Acasa/Difuzoare/înalte/driver Beyma CP755Nd

driver Beyma CP755Nd

In Stock

275,00  + TVA

putere : 60W AES @ 0.8Khz / 120W AES @ 0,8kHz
sensibilitate : 112dB @ 1W @ 1m
domeniu de frecvenţă : 0.6 – 20kHz
preţ kit reparaţii : 68,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 7.3 ohm @ 3.5 kHz
Re 5.5 ohm
Power capacity 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 112 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 2.2 T
BL factor 11.5 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 145 mm 5.70 in
Depth 65 mm 2.56 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 2.96 kg 6.51 lb
Total weight 3.21 kg 7.06 lb
Magnet Neodymium
