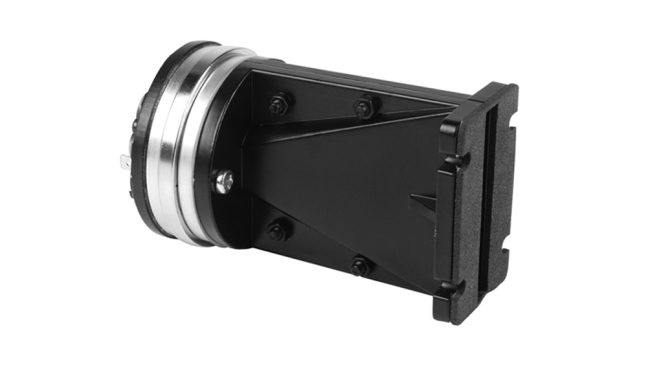

beyma-speakers-product-picture-compression-driver-wave-guide-WL3

driver Beyma WL-3

In Stock

175,95  + TVA

Putere: 40W AES peste 1,5 kHz, program 80W peste 1,5 kHz
Sensibilitate: 105 dB/ 1W/1M
Domeniu de frecvență: 700-20000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 20.5 mm 0.8 in
Diametru bobină: 44.4 mm 1.75 in
Dispersie: 90° x 5°

Descărcări: beyma-speakers-data-sheet-compression-driver-wave-guide-WL3

Preț kit reparații: 41,95 EURO+TVA

TECHNICAL SPECIFICATIONS



Throat diameter
20.5 mm 0.8 in
Flange height
76.2 mm 3 in
Nominal impedance
8 Ohm
Minimum impedance
5.5 ohm @ 4.5 kHz
Re
4.5 ohm
Power capacity
40 W AES above 1.5 kHz
Program power
80 W above 1.5 kHz
Sensitivity
105 dB 1 W @ 1 m coupled to horn
Frequency range
700-20000 Hz
Recom. crossover frequency
1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter
44.3 mm 1.75 in
Flux density
1.8 T
BL factor
8 N/A
Diaphragm material
Polyester



CONSTRUCTION DETAILS



Total weight
External diameter
80 mm 3.15 in
Depth
142 mm 5.60 in
Mounting
Four 6 mm diameter holes
Net weight
1 kg 2.2 lb
Total weight (2 units)
2.4 kg 5.28 lb.
Magnet
Neodymium
