horn de directivitate Beyma, TD-365

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TD-365
horn td365

horn de directivitate Beyma, TD-365

In Stock

62,95  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   60×50º
Throat diameter   36 mm 1.4 in

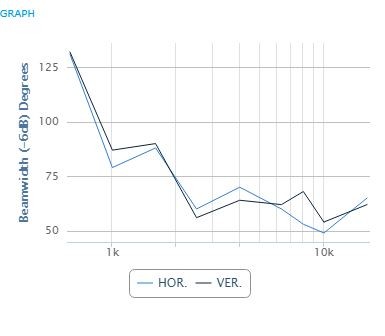

Horizontal beamwidth   60º (+27º -6º) (-6dB 1 – 16kHz)
Vertical beamwidth   50º (+20º -1º) (-6dB 2.5 – 16kHz)
Directivity factor (Q)   11.1 (media/average 0.63 – 16kHz)
Directivity index (DI)   10.3dB (+1.9dB -2.4dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   235x235x121mm
Baffle cutout dimensions (WxH)   204x202mm
Net weight   1.2 kg 2.64 Ib.
Total weight   1.53 kg 3.37 lb
Material   Aluminium
Construction   Cast Aluminium.
Connection of driver by 4 screws on a 4 in. (101.6mm)
diameter bolt circle.
