horn de directivitate Beyma, TD-385

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TD-385

horn de directivitate Beyma, TD-385

In Stock

49,00  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   80×50º
Throat diameter   36 mm 1.4 in

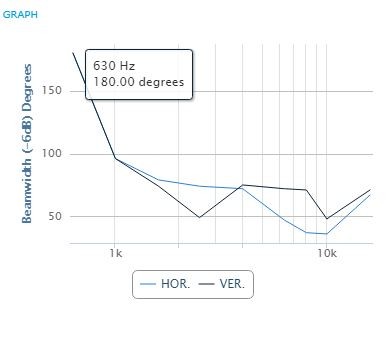

Horizontal beamwidth   80º (+16º -32º) (-6dB 1 – 20kHz)
Vertical beamwidth   50º (+29º -14º) (-6dB 1.6 – 20kHz)
Directivity factor (Q)   12.4 (media/average 0.63 – 16kHz)
Directivity index (DI)   10.5dB (+3.5dB -3.2dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   235x235x120mm
Baffle cutout dimensions (WxH)   204x202mm
Net weight   1.2 kg 2.64 Ib.
Total weight   1.53 kg 3.37 lb
Material   Aluminium
Construction   Cast Aluminium.
Connection of driver by 4 screws on a 4 in. (101.6mm)
diameter bolt circle.
