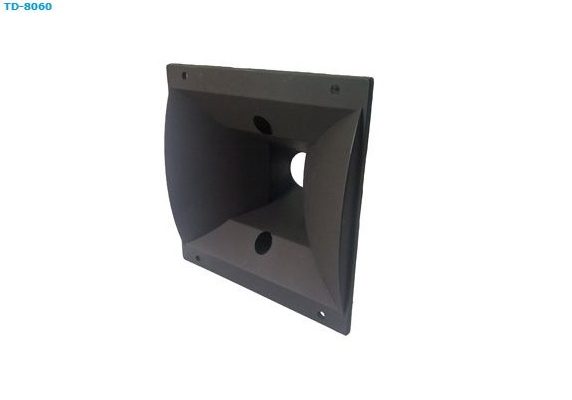

horn de directivitate Beyma, TD-8060

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TD-8060

horn de directivitate Beyma, TD-8060

In Stock

14,00  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   80×60º
Throat diameter   25 mm 1 in

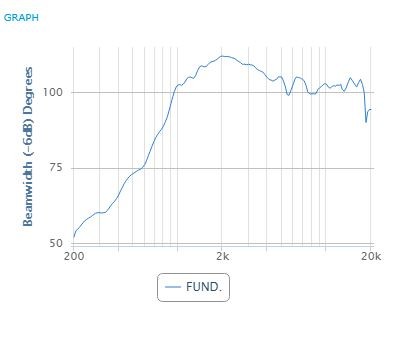

Horizontal beamwidth   80º (-6dB, 2 – 16kHz)
Vertical beamwidth   60º (-6dB, 2 – 16kHz)
Directivity factor (Q)   10.3 (media/average 1- 16kHz)
Directivity index (DI)   7.7dB (+4dB -3.7dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   140x140x67.4 mm
Baffle cutout dimensions (WxH)   113×130 mm
Net weight   0.130kg 0.28 lb
Total weight   0.225 kg 0.50 lb
Material   Polycarbonate
