horn de directivitate Beyma, TDWL4

Acasa/Difuzoare/hornuri/horn de directivitate Beyma, TDWL4

horn de directivitate Beyma, TDWL4

In Stock

58,00  + TVA

TECHNICAL SPECIFICATIONS

Dispersion HxV   90×20º
Throat diameter   12×208 mm 0.47×8.19 in

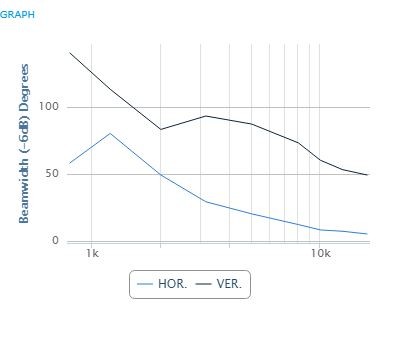

Horizontal beamwidth   90º (+22º -46º) (-6dB 1.2 – 16kHz)
Vertical beamwidth   20º (+27º -15º) (-6dB 2 – 16kHz)
Directivity factor (Q)   60 (media/average 1.2 – 16kHz)
Directivity index (DI)   15.5dB (+7dB -8.1dB)


CONSTRUCTIVE DETAILS

Dimensions (WxHxD)   210x250x147mm
Baffle cutout dimensions (WxH)   174x247mm
Net weight   1.5 kg 3.3 lb
Total weight   1.8 kg 3.96 lb
Material   Aluminium
