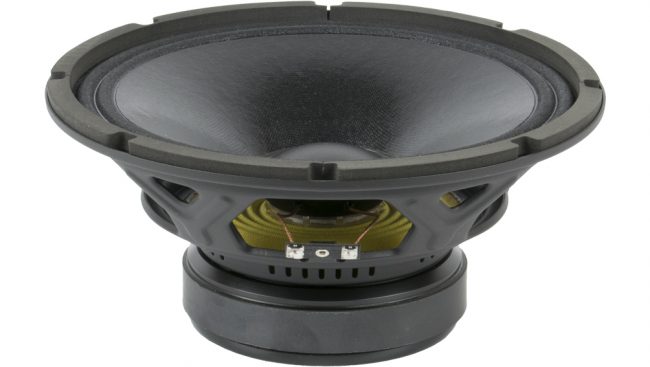

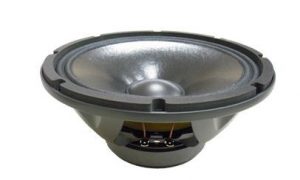

difuzor Beyma 10WRS300

Acasa/Difuzoare/10 inch/difuzor Beyma 10WRS300

difuzor Beyma 10WRS300

In Stock

57,95  + TVA



putere:
300W AES,
sensibilitate:
95 dB/1W/1M,
domeniu de frecvenţă:
55- 5000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
52 Hz,
preţ kit reparaţii:
38,95 Euro+TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 7.5 ohm
Power capacity 300 W AES
Program power 600 W
Sensitivity 95 dB 1 W/1 m @ ZN
Frequency range 55-4000 Hz
Recommended enclosure volume 15 / 50 l 0.53 / 1.77 ft.³
Voice coil diameter 50.8 mm 2 in
BL factor 14.3 N/A
Moving mass 0.041 Kg
Winding length 15 mm
Air gap height 8 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 52 Hz
Re 6.1 ohm
Qms 5.5
Qes 0.4
Qts 0.38
Vas 39.3 l
Cms 227 µm / N
Rms 2.5 kg/s
Efficiency % 1.3
Sd 0.035 m²
Xmax 6 mm
Vd 210 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Depth 117 mm 4.6 in
Net weight 3.5 kg 7.72 lb
Total weight 3.9 kg 8.6 lb
Magnet Ferrite
