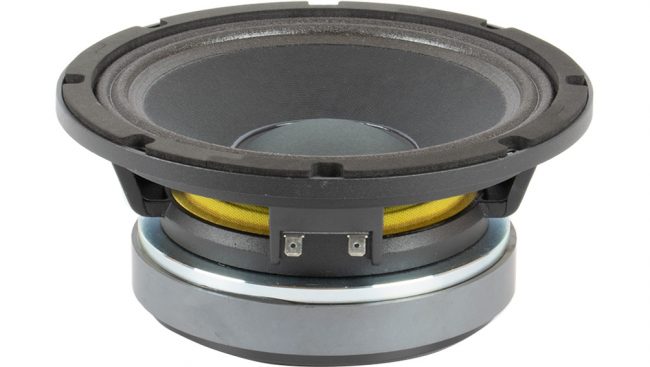

difuzor Beyma 8G40

Acasa/Difuzoare/8 inch/difuzor Beyma 8G40

difuzor Beyma 8G40

In Stock

69,90  + TVA

putere : 250W AES
sensibilitate : 95dB @ 2.83V @ 1m
domeniu de frecvenţă : 65 – 6000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 70Hz
preţ kit reparaţii : 35,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 7.3 ohm
Power capacity 250 W AES
Program power 500 W
Sensitivity 95 dB 1 W @ 1m @ 2Π
Frequency range 65-6000 Hz
Recommended enclosure volume 10 / 30 l 0.35 / 1.06 ft.³
Voice coil diameter 62.4 mm 2.5 in
BL factor 12.2 N /A
Moving mass 0.021 kg
Winding length 16 mm
Air gap height 7 mm
Xdamage pp 23 mm

THIELE SMALL PARAMETERS



Fs 70 Hz
Re 6.1 ohm
Qms 6.83
Qes 0.38
Qts 0.36
Vas 17 l
Cms 246 µm / N
Rms 1.4 kg / s
Efficiency % 1.5
Sd 0.022 m²
Xmax 4.5 mm
Vd 99 cm³
Le @1 kHz 1.3 mH

CONSTRUCTIVE DETAILS



Net weight 3.3 kg 7.26 lb
Total weight 3.45 kg 7.6 lb
Magnet Ferrite
