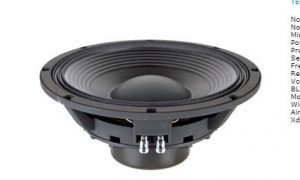

difuzor Beyma 12LX60 V2

Acasa/Difuzoare/12 inch/difuzor Beyma 12LX60 V2

difuzor Beyma 12LX60 V2

In Stock

137,90  + TVA

putere : 700W AES
sensibilitate : 96dB @ 2.83V @ 1m
domeniu de frecvenţă : 35 – 2000 Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 42 Hz
preţ kit reparaţii : 67.90 Euro +  TVA




TECHNICAL SPECIFICATIONS



Nominal diameter 300 mm 12 in
Nominal impedance 8 Ohm
Minimum impedance 7.1 ohm
Power capacity 700 W AES
Program power 1400 W
Sensitivity 96 dB 1 W @ 1 m @ 2Π
Frequency range 35-2000 Hz
Recommended enclosure volume 12 / 60 l 0.7 / 2.24 ft³
Voice coil diameter 100 mm 4 in
BL factor 20 N / A
Moving mass 0.102 kg
Winding length 20 mm
Air gap height 10 mm
Xdamage pp 58 mm

THIELE SMALL PARAMETERS



Fs 49 Hz
Re 5.1 ohm
Qms 15.3
Qes 0.4
Qts 0.38
Vas 43 l
Cms 99 µm / N
Rms 2.1 kg / s
Efficiency % 1.21
Sd 0.055 m²
Xmax 9 mm
Vd 500 cm³
Le @1 kHz 2.1 mH

CONSTRUCTIVE DETAILS



Net weight 9.7kg 21.39 lb
Total weight 10.4 kg 22.92 lb
Magnet Ferrite
