difuzor Beyma 12MC700Nd

Acasa/Difuzoare/12 inch/difuzor Beyma 12MC700Nd
Nou

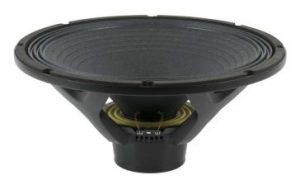

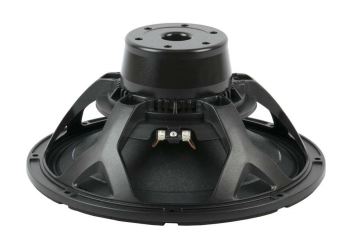

difuzor Beyma 12MC700Nd

In Stock

182,00  + TVA

putere : 700 W AES
sensibilitate  99 dB @ 2.83V @ 1m
domeniu de frecvenţă  60– 4000Hz
impedanţă  8 ohm
frecvenţă rezonanţă  58 Hz

12MC700Nd

TECHNICAL SPECIFICATIONS



Nominal diameter

300 mm 12 in

Nominal impedance

8 Ohm

Minimum impedance

7 ohm

Power capacity

700 W AES

Program power

1400 W

Sensitivity

99 dB 1 W/1 m @ ZN

Frequency range

60-4000 Hz

Recommended enclosure volume

40 l

Voice coil diameter

76.2 mm 3 in

BL factor

23.6 N/A

Moving mass

0.077 kg

Winding length

18 mm

Air gap height

10 mm

Xdamage pp

48 mm

THIELE SMALL PARAMETERS



Fs

58 Hz

Re

5.2 ohm

Qms

3.6

Qes

0.26

Qts

0.24

Vas

42 l

Cms

97 µm / N

Rms

7.7 kg/s

Efficiency %

3

Sd

0.055 m²

Xmax

7 mm

Vd

375 cm³

Le @1 kHz

0.9 mH

CONSTRUCTIVE DETAILS



Depth

145 mm 5.7 in

Net weight

3.7 kg 8.14lb

Total weight

4.4 kg 9.7 lb

Magnet

Neodymium
