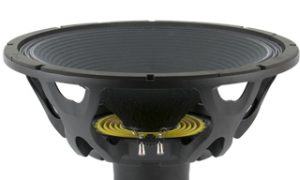

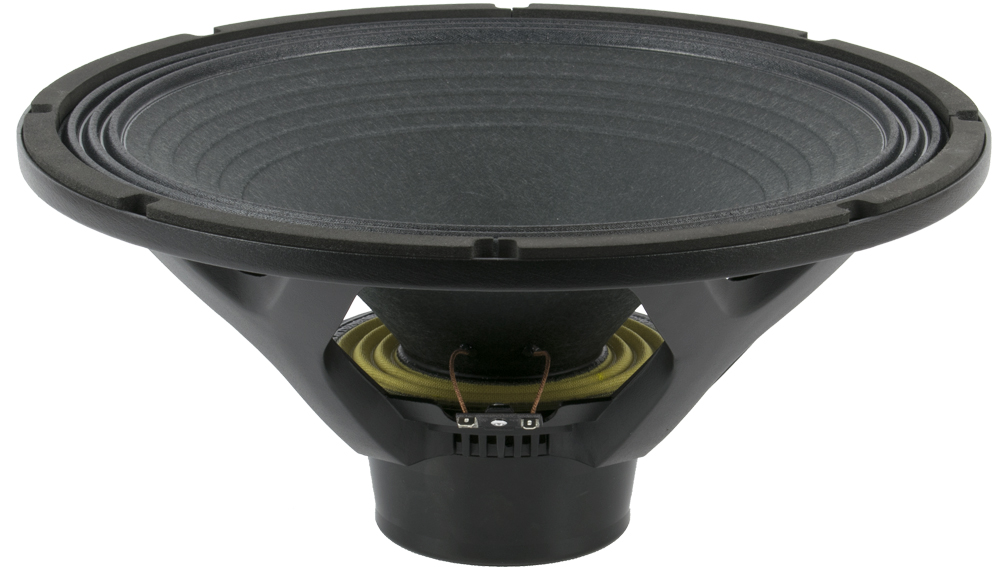

difuzor Beyma 15MC700Nd

Acasa/Difuzoare/15 inch/difuzor Beyma 15MC700Nd

difuzor Beyma 15MC700Nd

In Stock

198,95  + TVA

putere:
700W AES,
sensibilitate:
100 dB/1W/1M,
domeniu de frecvenţă:
50-4000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
49 Hz,
preţ kit reparaţii:
77,95 Euro+TVA

15MC700Nd

TECHNICAL SPECIFICATIONS



Nominal diameter

380 mm 15 in

Nominal impedance

8 Ohm

Minimum impedance

7 ohm

Power capacity

700 W AES

Program power

1400 W

Sensitivity

100 dB 1 W @ 1 m @ ZN

Frequency range

50-4000 Hz

Recommended enclosure volume

60 l

Voice coil diameter

76.2 mm 3 in

BL factor

22.6 N/A

Moving mass

0.107kg

Winding length

18 mm

Air gap height

10 mm

Xdamage pp

48 mm

THIELE SMALL PARAMETERS



Fs

49 Hz

Re

5.2 ohm

Qms

3.6

Qes

0.34

Qts

0.31

Vas

105 l

Cms

96 µm / N

Rms

9.2 kg/s

Efficiency %

3.7

Sd

0.088 m²

Xmax

7 mm

Vd

616 cm³

Le @1 kHz

0.8 mH

CONSTRUCTIVE DETAILS



Depth

174 mm 6.8 in

Net weight

4.2 kg – 9.26 lb

Total weight

5.2 kg 11.5 lb

Magnet

Neodymium
