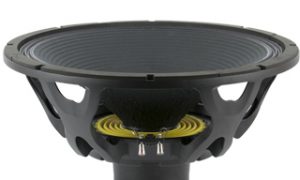

difuzor Beyma 15LEX1600Nd

Acasa/Difuzoare/15 inch/difuzor Beyma 15LEX1600Nd
Nou

difuzor Beyma 15LEX1600Nd

In Stock

317,00  + TVA

putere : 1600 W AES
sensibilitate : 96 dB @ 2.83V @ 1m
domeniu de frecvenţă : 40 – 1500Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 41 Hz

15LEX1600Nd

TECHNICAL SPECIFICATIONS



Nominal diameter

380 mm 15 in

Nominal impedance

8 Ohm

Minimum impedance

7.1 ohm

Power capacity

1600 W AES

Program power

3200 W

Sensitivity

96 dB 1 W/1 m @ ZN

Frequency range

40-1500 Hz

Recommended enclosure volume

90 l

Voice coil diameter

101.6 mm 4 in

BL factor

25.7 N/A

Moving mass

0.175 kg

Winding length

35 mm

Air gap height

14 mm

Xdamage pp

65 mm

THIELE SMALL PARAMETERS



Fs

41 Hz

Re

5.5 ohm

Qms

6.6

Qes

0.38

Qts

0.36

Vas

91 l

Cms

84 µm / N

Rms

6.8 kg/s

Efficiency %

1.7

Sd

0.088 m²

Xmax

14.5 mm

Vd

1276 cm³

Le @1 kHz

1.6 mH

CONSTRUCTIVE DETAILS



Depth

192 mm 7.6 in

Net weight

8.8 kg 19.4 lb

Total weight

9.8 kg 21.6 lb

Magnet

Neodymium
