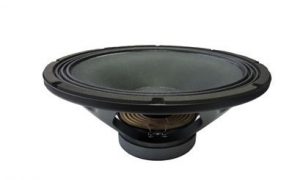

difuzor Beyma 15MCS500

Acasa/Difuzoare/15 inch/difuzor Beyma 15MCS500

difuzor Beyma 15MCS500

In Stock

104,90  + TVA

putere : 500 / 1000W AES
sensibilitate : 97,5 dB / 1W / 1m
domeniu de frecvenţă : 50 – 4000 Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 46 hz
preţ kit reparaţii :  65,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 7.2 ohm
Power capacity 500 W AES
Program power 1000 W
Sensitivity 97.5 dB 1 W/1 m @ ZN
Frequency range 50-4000 Hz
Voice coil diameter 63.5 mm 2.5 in
BL factor 18 N/A
Moving mass 0.098 kg
Winding length 19.5 mm
Air gap height 9.5 mm
Xdamage pp 40 mm

THIELE SMALL PARAMETERS



Fs 46 Hz
Re 5.8 ohm
Qms 7.8
Qes 0.5
Qts 0.48
Vas 133.5 l
Cms 122 µm / N
Rms 3.6 kg/s
Efficiency % 2.5
Sd 0.088 m²
Xmax 8 mm
Vd 704 cm³
Le @1 kHz 1.1 mH

CONSTRUCTIVE DETAILS



Depth 172 mm 6.77 in
Net weight 6.2 kg 13.67 lb
Total weight 7.2 kg 15.87 lb
Magnet Ferrite
