difuzor Beyma 15WR400

Acasa/Difuzoare/15 inch/difuzor Beyma 15WR400
beyma-speakers-product-picture-low-mid-frequency-15WR400

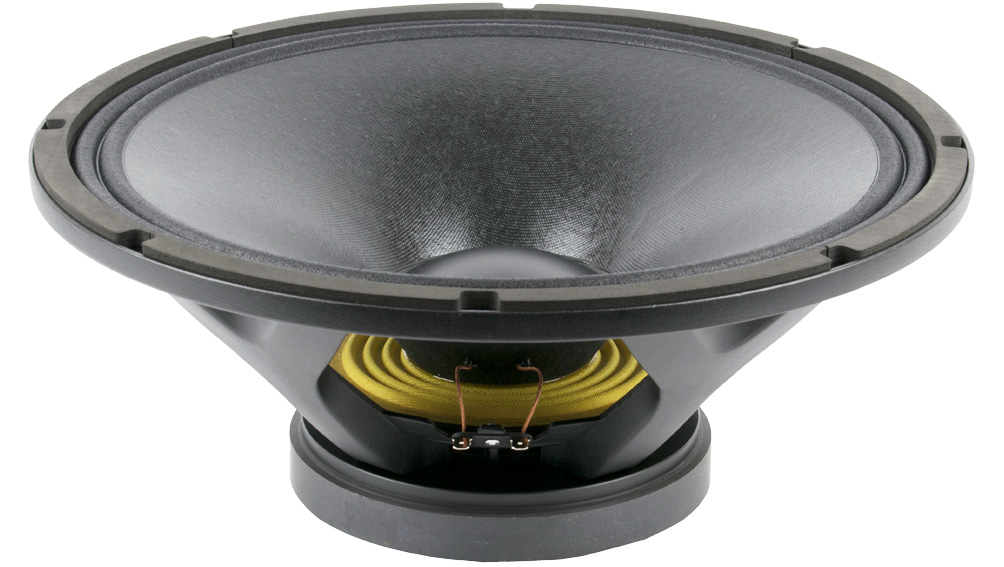

difuzor Beyma 15WR400

In Stock

159,95  + TVA

putere:
400 W AES
sensibilitate:
99 dB/1W/1M
domeniu de frecvenţă:
35-4000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
44 Hz
 preţ kit reparaţii:
 74,95 Euro+TVA
Descărcări: 15WR400



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 6.4 ohm
Power capacity 400 W AES
Program power 800 W
Sensitivity 99 dB 1 W @ 1 m @ 2Π
Frequency range 35-4000 Hz
Recommended enclosure volume 70 / 150 l 2.45 / 5.25 ft.³
Voice coil diameter 77 mm 3 in
BL factor 19.2 N/A
Moving mass 0.091 kg
Winding length 16 mm
Air gap height 8 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 36 Hz
Re 5.5 ohm
Qms 8.2
Qes 0.32
Qts 0.3
Vas 224 l
Cms 205 µm / N
Rms 2.5 kg/s
Efficiency % 3.4
Sd 0.088 m²
Xmax 6.3 mm
Vd 555 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Depth 160 mm 6.30 in
Net weight 6.1 kg 13.4 lb
Total weight 7.1 kg 15.6 lb
Magnet Ferrite
