difuzor Beyma 15MI100

Acasa/Difuzoare/15 inch/difuzor Beyma 15MI100

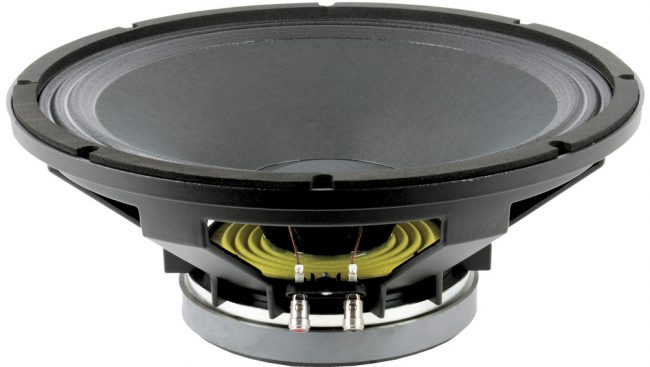

beyma-speakers-product-picture-low-mid-frequency-15MI100

difuzor Beyma 15MI100

In Stock

137,95  + TVA

putere:
450 W AES
sensibilitate:
101 dB/1W/1M
domeniu de frecvenţă:
30-4000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
48 Hz
preţ kit reparaţii:
79,90 Euro+TVA
Descărcări: 15MI100



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 6.6 ohm
Power capacity 450 W AES
Program power 900 W
Sensitivity 100 dB 1 W @ 1 m @ ZN
Frequency range 40-5000 Hz
Recommended enclosure volume
Voice coil diameter 77 mm 3 in
BL factor 19.2 N/A
Moving mass 0.077 kg
Winding length 13.7 mm
Air gap height 10 mm
Xdamage pp 24 mm

THIELE SMALL PARAMETERS



Fs 37 Hz
Re 6.2 ohm
Qms 6.38
Qes 0.3
Qts 0.29
Vas 264 l
Cms 240 µm / N
Rms 2.8 kg / s
Efficiency % 4.3
Sd 0.088 m²
Xmax 4.5 mm
Vd 396 cm³
Le @1 kHz 1 mH

CONSTRUCTIVE DETAILS



Net weight 7.8 kg 17.2 lb
Total weight 8.6 kg 18.9 lb
Magnet Ferrite
