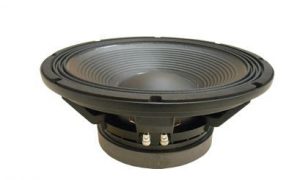

difuzor Beyma 15P80Nd

Acasa/Difuzoare/15 inch/difuzor Beyma 15P80Nd
beyma-speakers-product-picture-low-mid-frequency-15P80ND

difuzor Beyma 15P80Nd

In Stock

367,95  + TVA

putere:
800 W AES
sensibilitate:
100 dB/1W/1M
domeniu de frecvenţă:
30-5000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
35 Hz
preţ kit reparaţii:
111,95 Euro+TVA
Descărcări: 15P80Nd



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 5.5 ohm
Power capacity 800 W AES
Program power 1600 W
Sensitivity 100 dB 1 W @ 1 m @ ZN
Frequency range 30-4000 Hz
Recommended enclosure volume 40 / 150 l / 1.4 / 5.3 ft³
Voice coil diameter 100 mm 4 in
BL factor 24.3 N / A
Moving mass 0.105 kg
Winding length 20 mm
Air gap height 12 mm
Xdamage pp 52 mm

THIELE SMALL PARAMETERS



Fs 33 Hz
Re 5.1 ohm
Qms 7.7
Qes 0.182
Qts 0.178
Vas 250 l
Cms 229 µm / N
Rms 2.73 kg/s
Efficiency % 4.77
Sd 0.088 m²
Xmax 7.5 mm
Vd 660 cm³
Le @1 kHz 0.8 mH

CONSTRUCTIVE DETAILS



Net weight 6 kg 13.3 lb
Total weight 6.5 kg 14.3 lb
Magnet Neodymium
