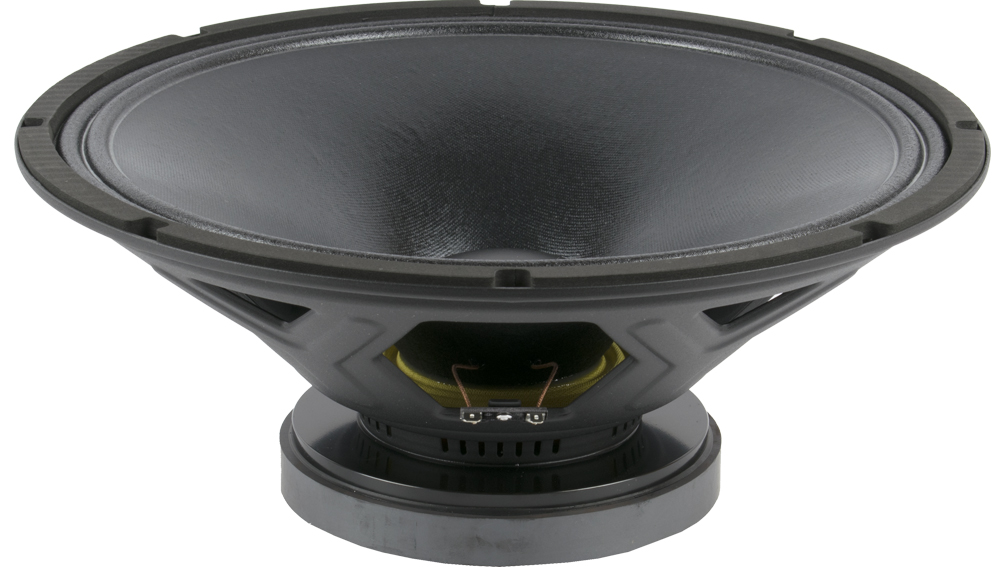

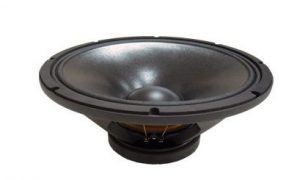

difuzor Beyma 15WRS400

Acasa/Difuzoare/15 inch/difuzor Beyma 15WRS400

difuzor Beyma 15WRS400

In Stock

136,95  + TVA

putere:
400 W AES
sensibilitate:
98,5 dB/1W/1M
domeniu de frecvenţă:
40-4000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
36 Hz
preţ kit reparaţii:
74,95 Euro+TVA
Descărcări: 15WRS400



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 7 ohm
Power capacity 400 W AES
Program power 800 W
Sensitivity 98 dB 1 W @ 1 m @ ZN
Frequency range 40-4000 Hz
Recommended enclosure volume 70 / 150 l 2.45 / 5.25 ft.³
Voice coil diameter 77 mm 3 in
BL factor 18.7 N/A
Moving mass 0.096
Winding length 16 mm
Air gap height 8 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 35 Hz
Re 5.6 ohm
Qms 9.1
Qes 0.34
Qts 0.33
Vas 233 l
Cms 213 µm / N
Rms 2.3 kg/s
Efficiency % 2.8
Sd 0.088 m²
Xmax 6.3 mm
Vd 555 cm³
Le @1 kHz 1.1 mH

CONSTRUCTIVE DETAILS



Depth 163 mm 6.42 in
Net weight 6.25 kg 13.78 lb
Total weight 7.25 kg 15.98 lb
Magnet Ferrite
