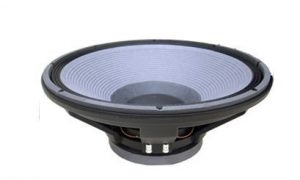

difuzor Beyma 18WRS600

Acasa/Difuzoare/18 inch/difuzor Beyma 18WRS600

difuzor Beyma 18WRS600

In Stock

154,90  + TVA

putere :
600W AES
sensibilitate :
98dB @ 2.83V @ 1m
domeniu de frecvenţă :
35 – 1000Hz
impedanţă :
8 ohm
frecvenţă rezonanţă :
32Hz
preţ kit reparaţii :
69,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6.4 ohm

Power capacity

600 W AES

Program power

1200 W

Sensitivity

98 dB 1 W @ 1 m @ ZN

Frequency range

35-1000 Hz

Voice coil diameter

76.2 mm 3 in

BL factor

19 N/A

Moving mass

0.147 kg

Winding length

21.5 mm

Air gap height

9.5 mm

Xdamage pp

53 mm

THIELE SMALL PARAMETERS



Fs

32 Hz

Re

5.4 ohm

Qms

4.8

Qes

0.44

Qts

0.4

Vas

372 l

Cms

167 µm / N

Rms

6.1 kg/s

Efficiency %

2.7

Sd

0.1255 m²

Xmax

8.5 mm

Vd

1130 cm³

Le @1 kHz

1.5 mH

CONSTRUCTIVE DETAILS



Depth

218 mm 8.58 in

Net weight

8.7 kg 19.2 lb

Total weight

10 kg 22 lb

Magnet

Ferrite
