difuzor Beyma 18P1000Fe V2 / S

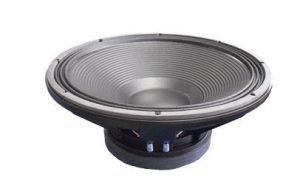

difuzor Beyma 18PW1400Fe
<span class="woocommerce-Price-amount amount"><bdi>299,00 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor Beyma 18PWB1000Fe
<span class="woocommerce-Price-amount amount"><bdi>284,00 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
287,00 € + TVA
putere: |
1200 W AES |
sensibilitate: |
98 dB/1W/1M |
domeniu de frecvenţă: |
30–2000 Hz |
impedanţă: |
8 Ohm |
frecvenţă rezonanţă: |
33 Hz |
preţ kit reparaţii: |
102,95 Euro+TVA |
Descărcări: 18P1000FeV2
Category: 18 inch
TECHNICAL SPECIFICATIONS
Nominal diameter |
460 mm 18 in |
Nominal impedance |
8 Ohm |
Minimum impedance |
5.5 ohm |
Power capacity |
1200 W AES |
Program power |
2400 W |
Sensitivity |
98 dB 1 W @ 1 m @ ZN |
Frequency range |
30-2000 Hz |
Voice coil diameter |
100 mm 4 in |
BL factor |
26.8 N/A |
Moving mass |
0.221 Kg |
Winding length |
21 mm |
Air gap height |
12 mm |
Xdamage pp |
52 mm |
THIELE SMALL PARAMETERS
Fs |
33 Hz |
Re |
5.2 ohm |
Qms |
10.5 |
Qes |
0.33 |
Qts |
0.32 |
Vas |
230 l |
Cms |
105 µm / N |
Rms |
4.4 kg/s |
Efficiency % |
2.4 |
Sd |
0.125 m² |
Xmax |
8 mm |
Vd |
1000 cm³ |
Le @1 kHz |
1.75 mH |
CONSTRUCTIVE DETAILS
Net weight |
13.8 kg 30.4 lb |
Total weight |
15.3 kg 33.7 lb |
Magnet |
Ferrite |
| Brand |
|---|
