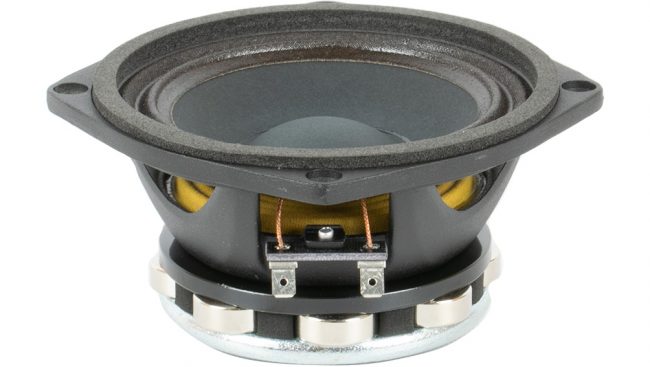

difuzor Beyma 5G40Nd/N

Acasa/Difuzoare/5 inch/difuzor Beyma 5G40Nd/N

difuzor Beyma 5G40Nd/N

In Stock

71,90  + TVA

putere: 100W AES,
sensibilitate: 92 dB/1W/1M,
domeniu de frecvenţă: 150-70000 Hz,
impedanţă: 8 ohm,
frecvenţă rezonanţă: 140 Hz,
preţ kit reparaţii: 33,95 Euro + TVA





TECHNICAL SPECIFICATIONS



Nominal diameter 125 mm 5 in
Nominal impedance 8 Ohm
Minimum impedance 6.9 ohm
Power capacity 100 W AES
Program power 200 W
Sensitivity 92 dB 1 W/1 m @ ZN
Frequency range 150-17000 Hz
Recommended enclosure volume 10 / 20 l 0.35 / 0.7 ft.³
Voice coil diameter 38.5 mm 1.5 in
BL factor 10 N / A
Moving mass 0.009 kg
Winding length 9 mm
Air gap height 7 mm
Xdamage pp 20 mm

THIELE SMALL PARAMETERS



Fs 140 Hz
Re 6.6 ohm
Qms 2.8
Qes 0.53
Qts 0.45
Vas 1.45 l
Cms 143 µm / N
Rms 2.9 kg/s
Efficiency % 0.72
Sd 0.0085 m²
Xmax 3 mm
Vd 26 cm³
Le @1 kHz 0.2 mH

CONSTRUCTIVE DETAILS



Depth 73.5 mm 2.89 in
Net weight 1.3 kg 2.86 lb
Total weight 1.8 kg 3.96 lb
Magnet Neodymium
