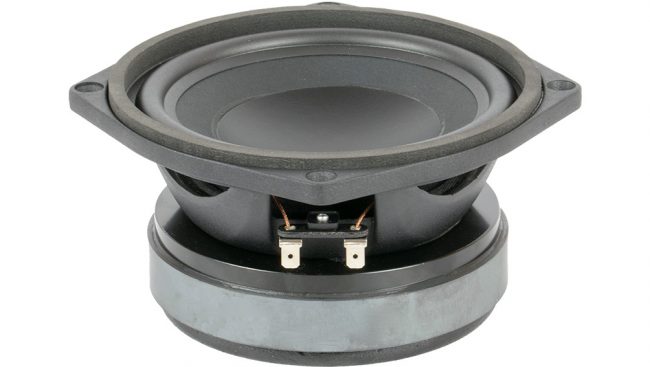

difuzor Beyma 6P200Fe

Acasa/Difuzoare/6 inch/difuzor Beyma 6P200Fe

difuzor Beyma 6P200Fe

In Stock

67,95  + TVA

putere: 200W AES,
sensibilitate: 92dB/1M/1M,
domeniu de frecvenţă: 60-9000Hz,
impedanţă: 8 ohm,
frecvenţă rezonanţă: 58Hz,
preţ kit reparaţii: 50,95 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 165 mm 6.5 in
Nominal impedance 8 Ohm
Minimum impedance 5.9 ohm
Power capacity 200 W AES
Program power 400 W
Sensitivity 93 dB 1 W @ 1 m @ ZN
Frequency range 55-9000 Hz
Recommended enclosure volume 6 / 20 l 0.21 / 0.71 ft.³
Voice coil diameter 51.7 mm 2 in
BL factor 10.5 N /A
Moving mass 0.017 kg
Winding length 14 mm
Air gap height 9 mm
Xdamage pp 20 mm

THIELE SMALL PARAMETERS



Fs 58 Hz
Re 4.9 ohm
Qms 4.6
Qes 0.27
Qts 0.26
Vas 11.1 l
Cms 429 µm / N
Rms 1.4 kg / s
Efficiency % 0.75
Sd 0.0135 m²
Xmax 5.5 mm
Vd 74.25 cm³
Le @1 kHz 0.3 mH

CONSTRUCTIVE DETAILS



Net weight 3.1 kg 6.83 lb
Total weight 3.5 kg 7.77 lb
Magnet Ferrite
