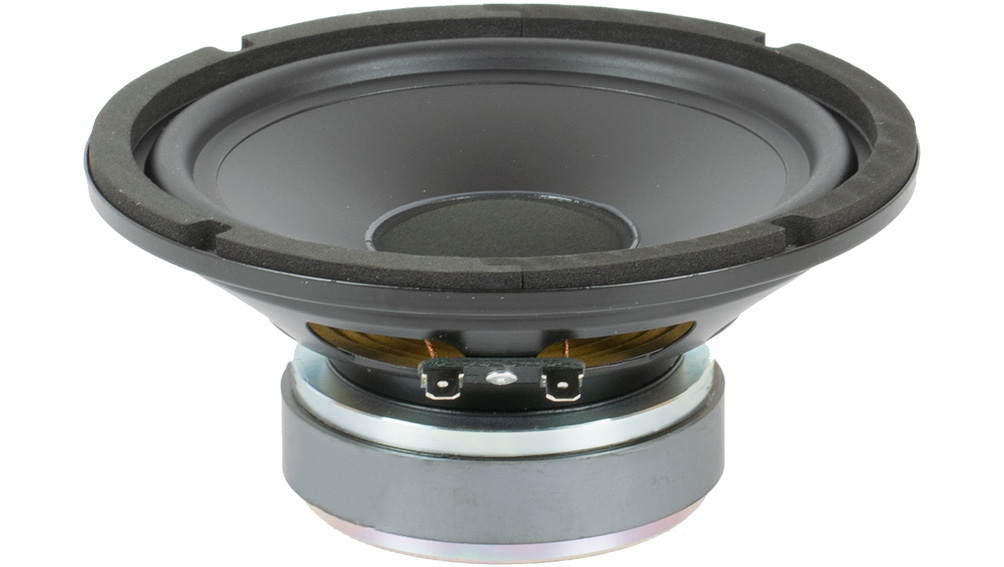

difuzor Beyma 6B30/P

Acasa/Difuzoare/6 inch/difuzor Beyma 6B30/P

difuzor Beyma 6B30/P

In Stock

30,95  + TVA



putere: 50W AES,
sensibilitate: 90dB/1W/1M,
domeniu de frecvenţă: 55-8000Hz,
impedanţă: 8 ohm,
frecvenţă rezonanţă: 56Hz,
preţ kit reparaţii: ———-





TECHNICAL SPECIFICATIONS



Nominal diameter 165 mm 6.5 in
Nominal impedance 8 Ohm
Minimum impedance 6.3 ohm
Power capacity 50 W AES
Program power 100 W
Sensitivity 90 dB 1 W @ 1m @ 2Π
Frequency range 55-8000 Hz
Recommended enclosure volume
Voice coil diameter 25 mm 1 in
BL factor 6.8 N /A
Moving mass 0.014 kg
Winding length 14 mm
Air gap height 6 mm
Xdamage pp 15 mm

THIELE SMALL PARAMETERS



Fs 56 Hz
Re 5.5 ohm
Qms 3
Qes 0.6
Qts 0.50
Vas 15.6 l
Cms 564 µm / N
Rms 1.7 kg / s
Efficiency % 0.5
Sd 0.014 m²
Xmax 5.5 mm
Vd 77 cm³
Le @1 kHz 0.3 mH

CONSTRUCTIVE DETAILS



Net weight 1.2 kg 2.6 lb
Total weight 1.3 kg 2.9 lb
Magnet Ferrite
