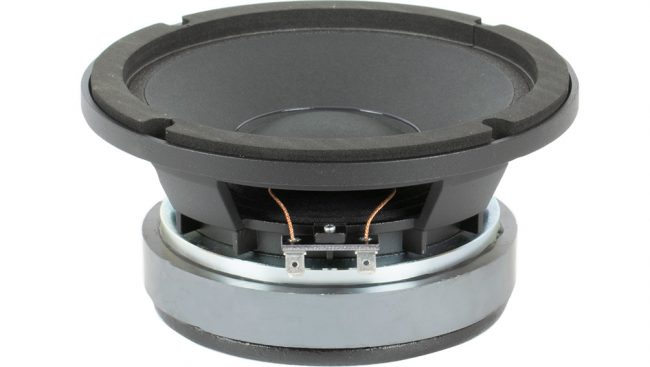

difuzor Beyma 6MI100

Acasa/Difuzoare/6 inch/difuzor Beyma 6MI100

difuzor Beyma 6MI100

In Stock

52,95  + TVA

putere: 250W AES,
sensibilitate: 97dB/1M/1M,
domeniu de frecvenţă: 150-6000Hz,
impedanţă: 8 ohm,
frecvenţă rezonanţă: 100Hz,
preţ kit reparaţii: 37,95 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 165 mm 6.5 in
Nominal impedance 8 Ohm
Minimum impedance 6.8 ohm
Power capacity 250 W AES
Program power 500 W
Sensitivity 94 dB @ 1 W @ ZN
Frequency range 100-8000 Hz
Voice coil diameter 51.7 mm 2 in
BL factor 10.8 N/A
Moving mass 0.014 kg
Winding length 9.2 mm
Air gap height 7 mm

THIELE SMALL PARAMETERS



Fs 128 Hz
Re 6 ohm
Qms 8.6
Qes 0.55
Qts 0.51
Vas 3.07 l
Cms 119 µm / N
Rms 1.2 kg / s
Efficiency % 1.2
Sd 0.014 m²
Xmax 3 mm
Vd 42 cm³
Le @1 kHz 0.2 mH

CONSTRUCTIVE DETAILS



Net weight 2.2 kg 4.84 lb
Total weight 2.3 kg 5.06 lb
Magnet Ferrite
