difuzor Beyma 8MC300Nd

Acasa/Difuzoare/8 inch/difuzor Beyma 8MC300Nd

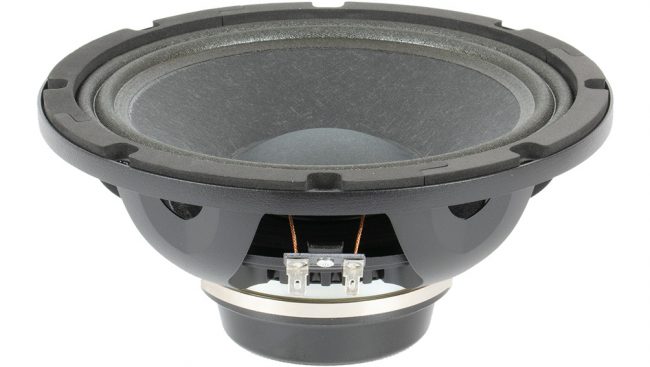

beyma-speakers-product-picture-low-mid-frequency-8MC300Nd

difuzor Beyma 8MC300Nd

In Stock

155,95  + TVA



putere:
300W AES,
sensibilitate:
96 dB/1W/1M,
domeniu de frecvenţă:
80-4000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
76 Hz,
preţ kit reparaţii:
43,95 Euro+TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 7.5 ohm
Power capacity 300 W AES
Program power 600 W
Sensitivity 96 dB 1 W @ 1 m @ 2Π
Frequency range 80-4000 Hz
Voice coil diameter 50.8 mm 2 in
BL factor 16 N/A
Moving mass 0.025 kg
Winding length 15 mm
Air gap height 7 mm
Xdamage pp 35 mm

THIELE SMALL PARAMETERS



Fs 76 Hz
Re 6.2 ohm
Qms 6.2
Qes 0.29
Qts 0.28
Vas 11.6 l
Cms 171 µm / N
Rms 2 kg/s
Efficiency % 1.7
Sd 0.022 m²
Xmax 6 mm
Vd 132 cm³
Le @1 kHz 0.5 mH

CONSTRUCTIVE DETAILS



Depth 96 mm 3.78 in
Net weight 1.9 kg 4.18 lb
Total weight 2.2 kg 4.85 lb
Magnet Neodymium
