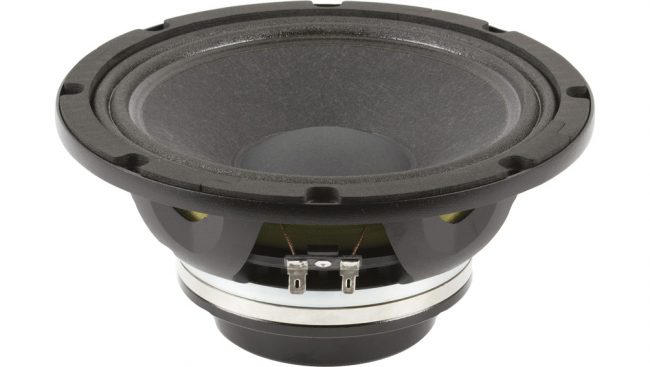

difuzor Beyma 8MC500Nd

174,95 € + TVA

putere:	500W AES,
sensibilitate:	98 dB/1W/1M,
domeniu de frecvenţă:	80-6000Hz,
impedanţă:	8 ohm,
frecvenţă rezonanţă:	69 Hz,
preţ kit reparaţii:	61,95 Euro+TVA

8MC500Nd

difuzor Beyma 8MC500Nd

difuzor Beyma 8MC500Nd

putere:

500W AES,

sensibilitate:

98 dB/1W/1M,

domeniu de frecvenţă:

80-6000Hz,

impedanţă:

8 ohm,

frecvenţă rezonanţă:

69 Hz,

preţ kit reparaţii:

61,95 Euro+TVA

Descriere

8MC500Nd

TECHNICAL SPECIFICATIONS

Nominal diameter

200 mm 8 in

Nominal impedance

8 Ohm

Minimum impedance

7.2 ohm

Power capacity

500 W AES

Program power

1000 W

Sensitivity

98 dB 1 W @ 1 m @ ZN

Frequency range

80-6000 Hz

Recommended enclosure volume

12 l

Voice coil diameter

63.5 mm 2.5 in

BL factor

17.5 N/A

Moving mass

0.024 kg

Winding length

14 mm

Air gap height

8 mm

Xdamage pp

42 mm

THIELE SMALL PARAMETERS

Fs

75 Hz

Re

5.3 ohm

Qms

3

Qes

0.20

Qts

0.19

Vas

12.2 l

Cms

179 µm / N

Rms

3.9 kg/s

Efficiency %

2.5

Sd

0.022 m²

Xmax

5 mm

Vd

110 cm³

Le @1 kHz

0.5 mH

CONSTRUCTIVE DETAILS

Depth

100 mm 3.9 in

Net weight

2.8 kg 6.2 lb

Total weight

3.1 kg 6.83 lb

Magnet
