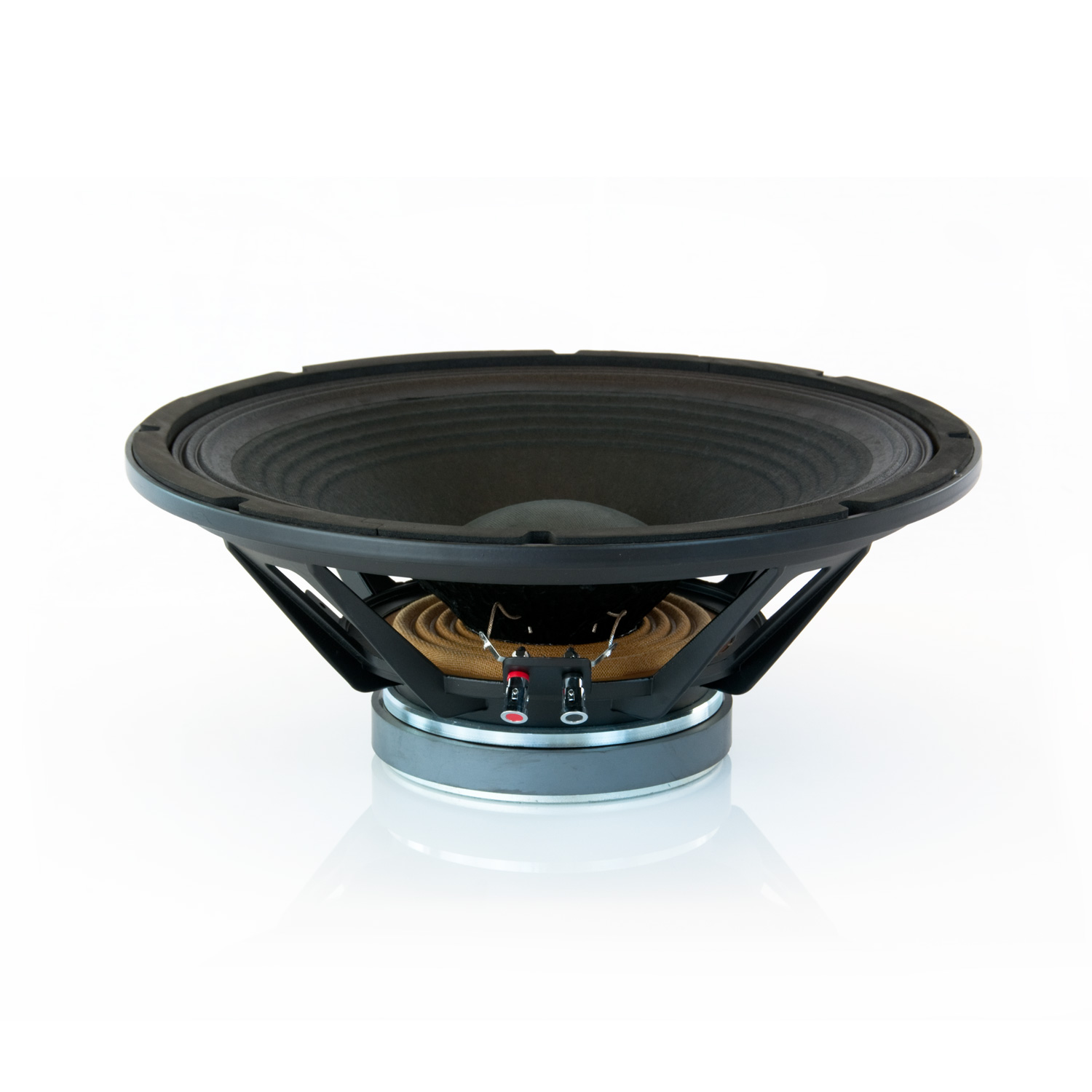

difuzor MasterAudio PA 15/8

Acasa/Difuzoare/15 inch/difuzor MasterAudio PA 15/8
Nou

difuzor MasterAudio PA 15/8

In Stock

59,95  + TVA

putere:
280 W AES
sensibilitate:
97 dB /1W/1M
domeniu de frecvenţă:
40-4000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
39 Hz
diametru bobină:
75 mm
Descărcări:PA15_8-Masteraudio

SPECIFICATIONS

Nominal Impedance 8 Ohm
RMS Power 280 W
MAX Power 560 W
Sensitivity (1W/1m) 97 dB
Frequency Range 40-4000 Hz
Voice Coil Diameter 75 mm
Magnet Ferrite
Magnet weight 77 oz
Basket Material Steel

THIELE AND SMALL PARAMETERS

Fs 39 Hz
Re 6.2 Ohm
Qes 0.5
Qms 21
Qts 0.48
Vas 188 l
Sd 700 cm²
Xmax 4.5 mm
Mms 88 gr
Bl 15 Txm
Le 44 mH
EBP 78 Hz

MOUNTING INFORMATION

Overall Diameter 388 mm (15″)
Bolt Circle Diameter 370 mm
Baffle cutout Diameter 352 mm
Depth 156 mm
Mounting Depth 143 mm
Net Weight 8 Kg
