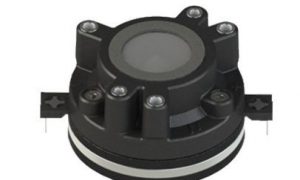

driver Beyma CD1Fe

driver Beyma CD1Fe

In Stock

35,95  + TVA



Putere: 20W AES peste 2 kHz, program 40W peste 2 kHz
Sensibilitate: 109 dB/1W/ 1M cuplat la TD-164
Domeniu de frecvență: 1000-20000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 25,4 mm 1 in
Diametru bobină: 25,4 mm 1 in
Preț kit reparații: ————





TECHNICAL SPECIFICATIONS



Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 6.8 ohm
Power capacity 20 W AES above 2 kHz
Program power 40 W above 2 kHz
Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-164
Frequency range 1000-20000 Hz
Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)
Voice coil diameter 25.4 mm 1 in
Flux density 1.75 T
Diaphragm material Polyamide

CONSTRUCTIVE DETAILS



External diameter 85 mm 3.34 in
Depth 53 mm 2.08 in
Mounting Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.
Mounting hardware is supplied
Net weight 0.8 kg 1.8 lb
Total weight 0.9 kg 2.0 lb
Magnet Ferrite
