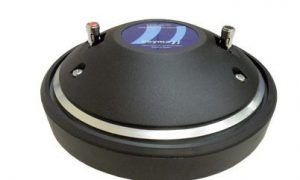

driver Beyma CP750Ti

Acasa/Difuzoare/înalte/driver Beyma CP750Ti

driver Beyma CP750Ti

In Stock

165,00  + TVA

putere : 70W AES @ 0.8Khz / 90W AES @ 1.5kHz
sensibilitate : 110dB @ 1W@ 1m
domeniu de frecvenţă : 0.6 – 20kHz
preţ kit reparaţii : 75,97 Euro + TVA



TECHNICAL SPECIFICATIONS



Throat diameter 49 mm 2 in
Nominal impedance 8 Ohm
Minimum impedance 7.4 ohm
Re 5.5 ohm
Power capacity 70 W AES above 800 Hz
Program power 140 W above 800 Hz
Sensitivity 110 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 1.875 T
BL factor 10 N / A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 192 mm 7.56 in
Depth 88 mm 3.46 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 7.05 kg 15.51 lb
Total weight 7.3 kg 16.06 lb
Magnet Ferrite
