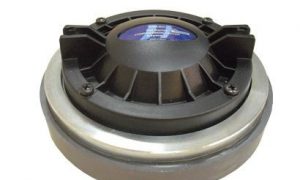

driver Beyma SMC280/N

driver Beyma SMC280/N

In Stock

61,95  + TVA





Putere: 50W AES peste 1,5 KHz, program 100W peste 1,5 KHz
Sensibilitate: 105 dB/ 1W/1M cuplat la horn
Domeniu de frecvență: 800-18000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 25,4 mm 1 in
Diametru bobină: 44,4 mm 1,75 in
Preț kit reparații: 32,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 25 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5.2 ohm @ 4 kHz
Re 5.6 ohm
Power capacity 50 W AES above 1.5 kHz
Program power 100 W above 1.5 kHz
Sensitivity 105 dB 1 W @ 1 m coupled to horn
Frequency range 800-18000 Hz
Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter 44.3 mm 1.75 in
Flux density 1.65 T
BL factor 8.5 N / A
Diaphragm material Polyester

CONSTRUCTIVE DETAILS



External diameter 102 mm 4 in
Depth 53 mm 2.08 in
Mounting Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.
Mounting hardware is supplied
Net weight 1.3 kg 2.86 lb
Total weight 1.4 kg 3.1 lb
Magnet Ferrite
