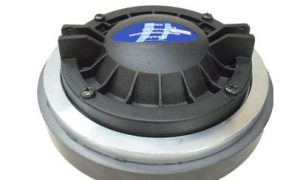

driver Beyma SMC60

driver Beyma SMC60

In Stock

172,95  + TVA





Putere: 80W AES peste 1 KHz, program 160W peste 1 KHz
Sensibilitate: 109 dB/ 1W/1M cuplat la horn
Domeniu de frecvență: 500-18000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 50,8 mm 2 in
Diametru bobină: 72,2 mm 2,8 in
Preț kit reparații: 63,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 49 mm 2 in
Nominal impedance 8 Ohm
Minimum impedance 6.9 ohm @ 3.3 kHz
Re 5.5 ohm
Power capacity 80 W AES above 1 kHz
Program power 160 W above 1 kHz
Sensitivity 109 dB 1 W @ 1 m coupled to horn
Frequency range 500-18000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 1.55 T
BL factor 8.8 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 156 mm 6.14 in
Depth 75 mm 2.95 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 4.5 kg 9.9 lb
Total weight 5 kg 11 lb
Magnet Ferrite
