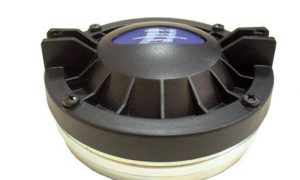

driver Beyma SMC65

beyma-speakers-product-picture-compression-drivers-SMC65

driver Beyma SMC65

In Stock

158,95  + TVA





Putere: 50W AES peste 800 Hz, program 100W peste 800 Hz
Sensibilitate: 107 dB/ 1W/1M cuplat la TD-385
Domeniu de frecvență: 700-18000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 36 mm 1,4 in
Diametru bobină: 72,4 mm 2,85 in
Preț kit reparații: 63,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 6.9 ohm @ 3.3 kHz
Re 5.5 ohm
Power capacity 50 W AES above 800 Hz
Program power 100 W above 800 Hz
Sensitivity 107 dB 1 W @ 1 m coupled to horn
Frequency range 700-18000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 1.55 T
BL factor 8.8 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 156 mm 6.14 in
Depth 64 mm 2.52 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 4.2 kg – 9.26 lb
Total weight 4.7 kg 10.34 lb
Magnet Ferrite
