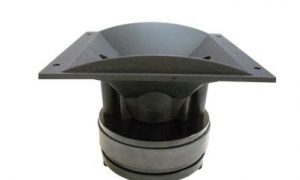

driver Beyma SMC65/Nd

Acasa/Difuzoare/înalte/driver Beyma SMC65/Nd

driver Beyma SMC65/Nd

In Stock

176,00  + TVA

putere : 70 / 140W
sensibilitate : 108dB / 1w /1m
domeniu de frecvenţă : 600 – 20000hz



TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 7.2 ohm @ 3 kHz
Re 5.5 ohm
Power capacity 70 W AES above 1 kHz
Program power 140 W above 1 kHz
Sensitivity 108 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 2 T
BL factor 11.36 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 123 mm 4.84 in
Depth 53.5 mm 2.11 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 2.2 kg 4.84 lb
Total weight 2.7 kg 5.94 lb
Magnet Neodymium
