tweeter Beyma CP/16

tweeter Beyma CP/16

In Stock

31,95  + TVA

Putere: 15 W AES , program 30 W
Sensibilitate: 105 dB /1W /1M

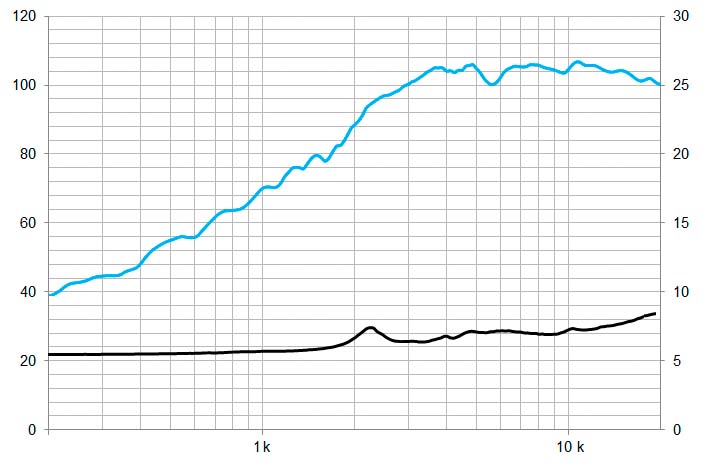

Domeniu de frecvență: 3000-20000 Hz
Impedanță: 8 Ohm
Frecvență crossover recomandată: 6 kHz or higher (12 dB/oct. min slope)

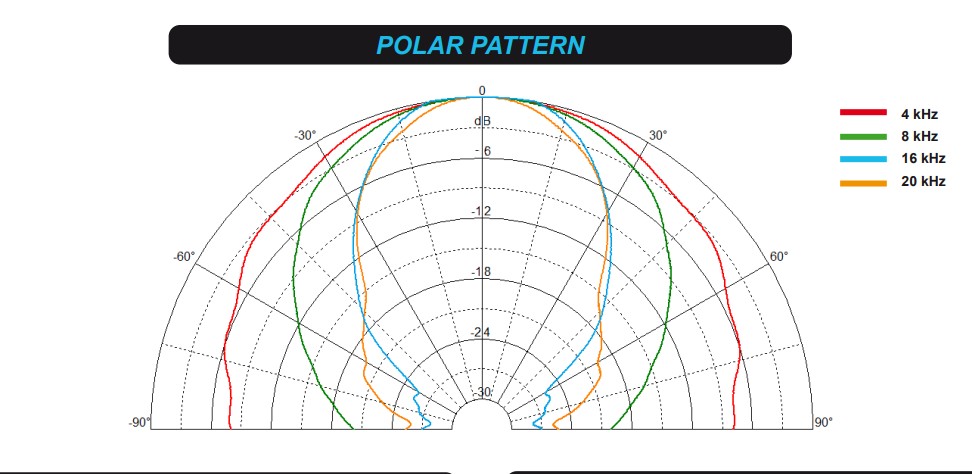

Dispersie: 40° conical
Preț kit reparații: 19,95 EURO+TVA

Descărcări: beyma-speakers-data-sheet-compression-tweeter-CP16

TECHNICAL SPECIFICATIONS



Nominal impedance
8 Ohm
Minimum impedance
6.4 ohm @ 3.5 kHz
Sensitivity
105 dB 1 W @ 1 m
Re
5.4 ohm
Frequency range
3000-20000 Hz
Power capacity
15 W AES
Program power
30 W
Recom. crossover frequency
6 kHz or higher (12 dB/oct. min slope)
Dispersion HxV
40º conical
Voice coil diameter
25.4 mm 1 in
Flux density
1.45 T
BL factor
4 N/A
Diaphragm material
Aluminium

CONSTRUCTION DETAILS



External diameter
86×86 mm 3.38×3.38 in
Depth
65 mm 2.56 in
Cutout diameter
ø 75 mm 3 in
Bolt circle diameter
92 mm 3.62 in
Net weight
0.75 kg 1.65 lb
Total weight
0.8 kg 1.76 lb
Magnet
Ferrite
