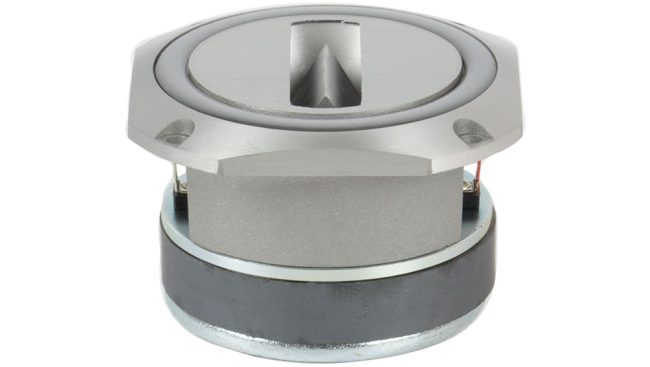

tweeter Beyma CP/21/F

tweeter Beyma CP/21/F

In Stock

82,95  + TVA

Putere: 25 W AES , program 50 W
Sensibilitate: 105 dB /1W /1M
Domeniu de frecvență: 3500-20000 Hz
Impedanță: 8 Ohm
Frecvență crossover recomandată: 5 kHz or higher (12 dB/oct. min slope)
Dispersie: 140°x40°
Preț kit reparații: 40,95 EURO+TVA

Descărcări: beyma-speakers-data-sheet-compression-tweeter-CP21F

TECHNICAL SPECIFICATIONS



Nominal impedance
8 Ohm
Minimum impedance
8 ohm @ 9 kHz
Sensitivity
105 dB 1 W @ 1 m coupled to horn
Re
6.1 ohm
Frequency range
3500-20000 Hz
Power capacity
25 W AES
Program power
50 W
Recom. crossover frequency
5 kHz or higher (12 dB/oct. min slope)
Dispersion HxV
140º x 40º
Voice coil diameter
37.6 mm 1.5 in
Flux density
1.55 T
BL factor
5.2 N/A
Diaphragm material
Aluminium

CONSTRUCTION DETAILS



External diameter
102×102 mm 4×4 in
Depth
72 mm 2.83 in
Cutout diameter
ø 92 mm 3.62 in
Bolt circle diameter
107 mm 4.21 in
Net weight
1.7 kg 3.75 lb
Total weight
1.75 kg 3.85 lb
Magnet
Ferrite
