difuzor coaxial Beyma, 10CX300Fe

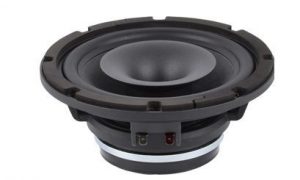

difuzor coaxial Beyma, 8CX300Nd/N
<span class="woocommerce-Price-amount amount"><bdi>290,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 12CXA400Fe
<span class="woocommerce-Price-amount amount"><bdi>305,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
259,95 € + TVA
| putere (LF/HF): | 300/50W RMS, |
| sensibilitate(LF/HF): | 96,5/104 dB/1W/1M, |
| domeniu de frecvenţă: | 50-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 48 Hz, |
| preţ kit reparaţii: | 54,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCD106
LF Recone kit ref.
5M10CX3FE8
Nominal diameter
250 mm 10 in
Minimum impedance LF/HF
5.7 / 10.1 ohm
Frequency range
50-20000 Hz
Power capacity LF/HF
300/50 W AES
Program power LF/HF
600/100 W
Sensitivity LF/HF
96.5/104 dB @ 1w @ 1m
Recom. crossover frequency
2 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
62/44 mm – 2.5/1.75 in
BL factor
11.65 N/A
Moving mass
0.035 kg
Winding length
17.5 mm
Xdamage pp
30 mm
PARAMETERS THIELE & SMALL
Fs
48 Hz
Re
5.2 ohm
Qms
5.3
Qes
0.41
Qts
0.38
Vas
63 l
Cms
307 µm / N
Rms
2 kg/s
Efficiency %
1.7
Sd
0.038 m²
Xmax
6.7 mm
Vd
256 cm³
Le @1 kHz
0.4 mH
CONSTRUCTION DETAILS
Net weight
5.1 kg 11.22 lb
Total weight
5.5 kg 12.1 lb
Magnet
Ferrite
