tweeter Beyma CP-22

Acasa/Difuzoare/înalte/tweeter Beyma CP-22
Nou

tweeter Beyma CP-22

In Stock

63,95  + TVA





Putere: 25W AES, program 50W
Sensibilitate: 107 dB/1W/1M
Domeniu de frecvență: 5000-20000 Hz
Impedanță: 8 Ohm
Dispersie(HxV): 40° conical
Diametru bobină: 37,6 mm 1,5 in
Preț kit reparații: 34,95 EURO+TVA



CP-22

TECHNICAL SPECIFICATIONS



Nominal impedance

8 Ohm

Minimum impedance

8.5 ohm @ 9 kHz

Re

6.1 ohm

Power capacity

25 W AES

Program power

50 W

Sensitivity

107 dB 1 W @ 1 m

Frequency range

4000-20000 Hz

Recom. crossover frequency

5 kHz or higher (12 dB/oct. min slope)

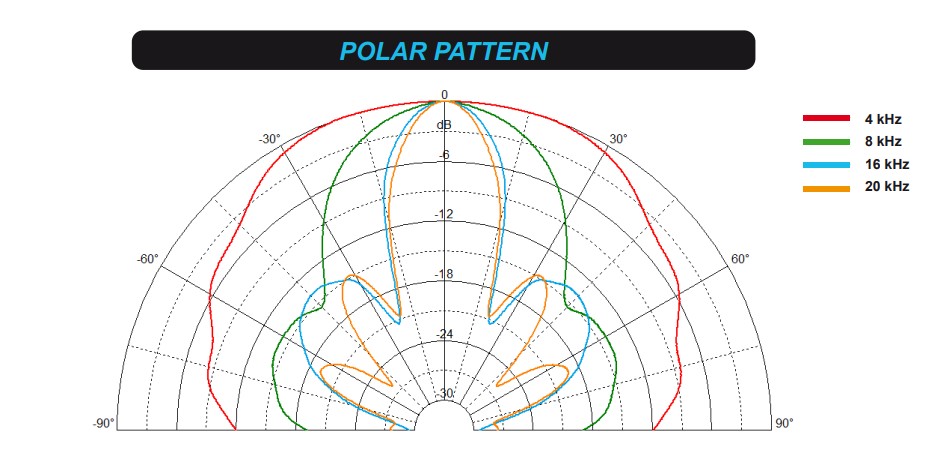

Dispersion HxV

40º conical

Voice coil diameter

37.6 mm 1.5 in

Flux density

1.55 T

BL factor

5.2 N/A

Diaphragm material

Aluminium

CONSTRUCTIVE DETAILS



External diameter

102×102 mm 4×4 in

Depth

71 mm 2.79 in

Cutout diameter

ø 92 mm 3.62 in

Bolt circle diameter

107 mm 4.21 in

Net weight

1.6 kg 3.5 lb

Total weight

1.67 kg 3.67 lb

Magnet

Ferrite
