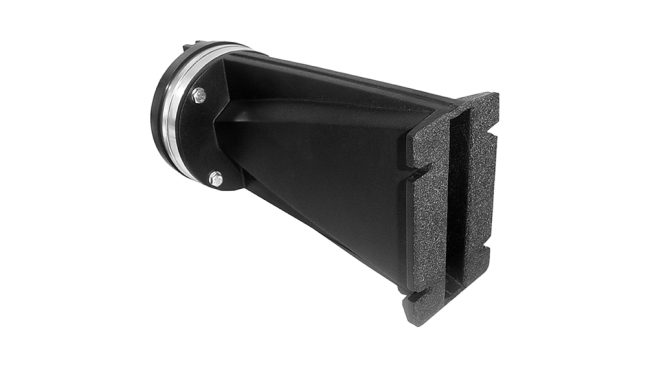

beyma-speakers-product-picture-compression-driver-wave-guide-WL5

driver Beyma WL-5

In Stock

348,95  + TVA

Putere: 50W AES peste 800 Hz, program 100W peste 800 Hz
Sensibilitate: 108 dB/ 1W/1M
Domeniu de frecvență: 600-20000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 36 mm 1,4 in
Diametru bobină: 72,4 mm 2,85 in
Dispersie: 90° x 5°

Descărcări: WL5

Preț kit reparații: 62,95 EURO+TVA

TECHNICAL SPECIFICATIONS



Throat diameter
36 mm 1.4 in
Flange height
125 mm 5 in
Nominal impedance
8 Ohm
Minimum impedance
7.2 ohm @ 3 kHz
Re
5.5 ohm
Power capacity
50 W AES above 0.8 kHz
Program power
100 W above 0.8 kHz
Sensitivity
108 dB 1 W @ 1 m
Frequency range
600-20000 Hz
Recom. crossover frequency
800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter
72.4 mm 2.85 in
Flux density
2 T
BL factor
11 N /A
Diaphragm material
Titanium dome with polyester surround

CONSTRUCTION DETAILS



Total weight
External diameter
123 mm 4.84 in
Depth
271 mm 10.67 in
Mounting
Four 7.5 mm diameter holes
Net weight
2.62 kg 5.76 lb.
Total weight (2 units)
5.65 kg 12.43 lb.
Magnet
Neodymium
